Triplex Plunger Pump Lost Flow: Valves or Suction?

Confirm that the apparent loss is real

Compare the flow instrument with the available tank or reference measurement under controlled conditions. Note any bypass or return path that diverts liquid before the measurement point. Verify actual speed rather than relying only on the driver command. A change in instrumentation or line-up can appear to be pump deterioration even when displacement has not changed.

Separate incomplete filling from internal leakage

Restricted suction, gas entry and insufficient supply can reduce chamber filling. Damaged valves or packing can reduce net delivery after filling. Review inlet readings and liquid availability first, then inspect isolated components using the approved procedure. The same low discharge rate can arise from either group, so do not order valves based on flow alone.

Use comparative trends to narrow the diagnosis

Record speed, inlet pressure, discharge pressure, fluid temperature and rate together. Compare with a known acceptable duty point using similar liquid properties. A rate that changes disproportionately with pressure can be useful diagnostic evidence, but it requires interpretation alongside the mechanical inspection. Document any temporary change and restore the approved configuration before returning to normal service.

Evidence to collect for this decision

Keep these observations with the equipment reference and operating conditions. When comparing proposals or service findings, check that each record describes the same configuration and duty. Resolve missing inputs with the responsible engineer before treating an estimate as an accepted operating limit.

Turn the symptom into a traceable service decision

Useful fault records describe the condition immediately before the symptom, its duration and the operating response. Include the equipment identification, installed part references, fluid or process conditions and the last relevant maintenance. Compare with a baseline recorded when performance was acceptable. If several readings changed, retain their timing: the first change may help distinguish the initiating problem from its consequences.

A service decision should identify what will be inspected, what evidence permits reuse and what finding requires replacement or specialist assessment. The original equipment instructions govern isolation, disassembly and return to service. Keep removed-part findings with the work record. After an approved repair, verify the affected function under the agreed conditions and monitor for recurrence. Replacing a component can restore operation without proving the original cause has been removed, so the follow-up observation is part of the diagnosis.

Apply the review to the offered oilfield triplex plunger pump

Use the exact pump stroke, plunger diameter and fluid-end revision in the calculation. Separate power-end condition from pressure-side condition in inspection records. Confirm which parts and operating limits change when a different fluid end or plunger set is proposed.

• Pressure-flow duty point: record the project range and identify whether the value is measured, calculated or still provisional.
• Fluid chemistry and abrasiveness: state the accepted limit and the equipment or process boundary to which it applies.
• Plunger diameter: include variation through the job instead of relying only on the normal operating value.
• Driver speed and power: identify the responsible supplier or site team and the evidence needed before acceptance.
• Maintenance access: review the case that governs this requirement and retain its basis with the equipment records.

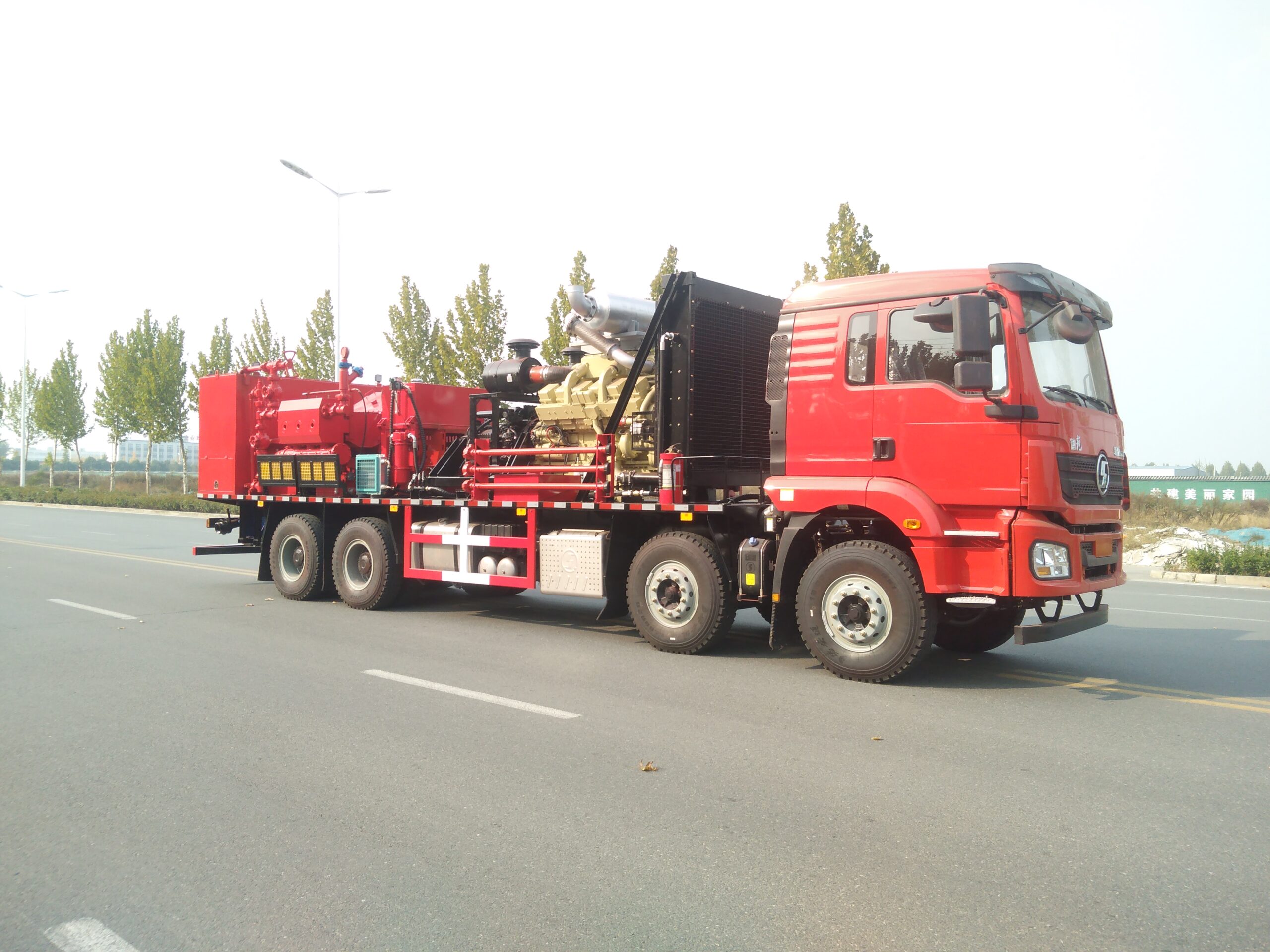

The complete package is intended for providing repeatable high-pressure positive-displacement flow for cementing, stimulation, flushing and well-service work. Confirm the scope of the power end, fluid end, plungers and packing, suction and discharge valves against the selected duty. Use the specifications and sizing guide for the broader equipment requirements and the RFQ checklist to organize the supporting documents.
