Triplex Plunger Diameter: Pressure, Flow and Rod Load

Relate displacement to diameter and speed

For a given stroke and speed, a larger plunger displaces more liquid per cycle. Delivered flow also depends on filling and volumetric efficiency. Ask for the displacement data and the recommended speed range of the actual fluid end. A theoretical calculation is a starting point, not proof that the suction arrangement can fill the chambers at the proposed speed.

Check rod load before accepting pressure

Pressure acting on the plunger area creates load in the reciprocating mechanism. Increasing diameter can therefore reduce the pressure permitted by a load limit. The fluid-end pressure rating, packing arrangement and power-end limits must all be checked. Do not approve a conversion solely because the new plunger physically fits the block or because a seal kit is available.

Treat a size conversion as an engineered change

Request the revised pressure-flow envelope, compatible parts and instrument or relief-setting implications. Update the equipment records so operators do not continue using the previous rating. Compare whether a different speed or a separate pump would meet the duty more effectively. The conversion should include the supplier’s assembly instructions and the necessary post-work verification before returning to service.

Evidence to collect for this decision

Keep these observations with the equipment reference and operating conditions. When comparing proposals or service findings, check that each record describes the same configuration and duty. Resolve missing inputs with the responsible engineer before treating an estimate as an accepted operating limit.

Check the pump and connected system at the same duty

A pressure-pumping review should distinguish the process requirement from the limits of the installed equipment. The pump, driver, suction arrangement, discharge connections and receiving system must support the same operating case. Record fluid density, viscosity, temperature and solids where they influence the calculation. If a supplier curve assumes clean water, ask how the actual service changes the conclusion before accepting the proposed duty.

Compare a normal case with the most demanding credible case and any sustained low-rate operation. Identify which limit governs each result, rather than adding a general margin without explaining its purpose. Calculations and inspection findings should refer to the equipment configuration being supplied. Where an adjustment is needed, have the responsible engineer review the change and the manufacturer confirm the affected equipment limits. Field observations support that review; they do not authorize operation beyond a documented rating.

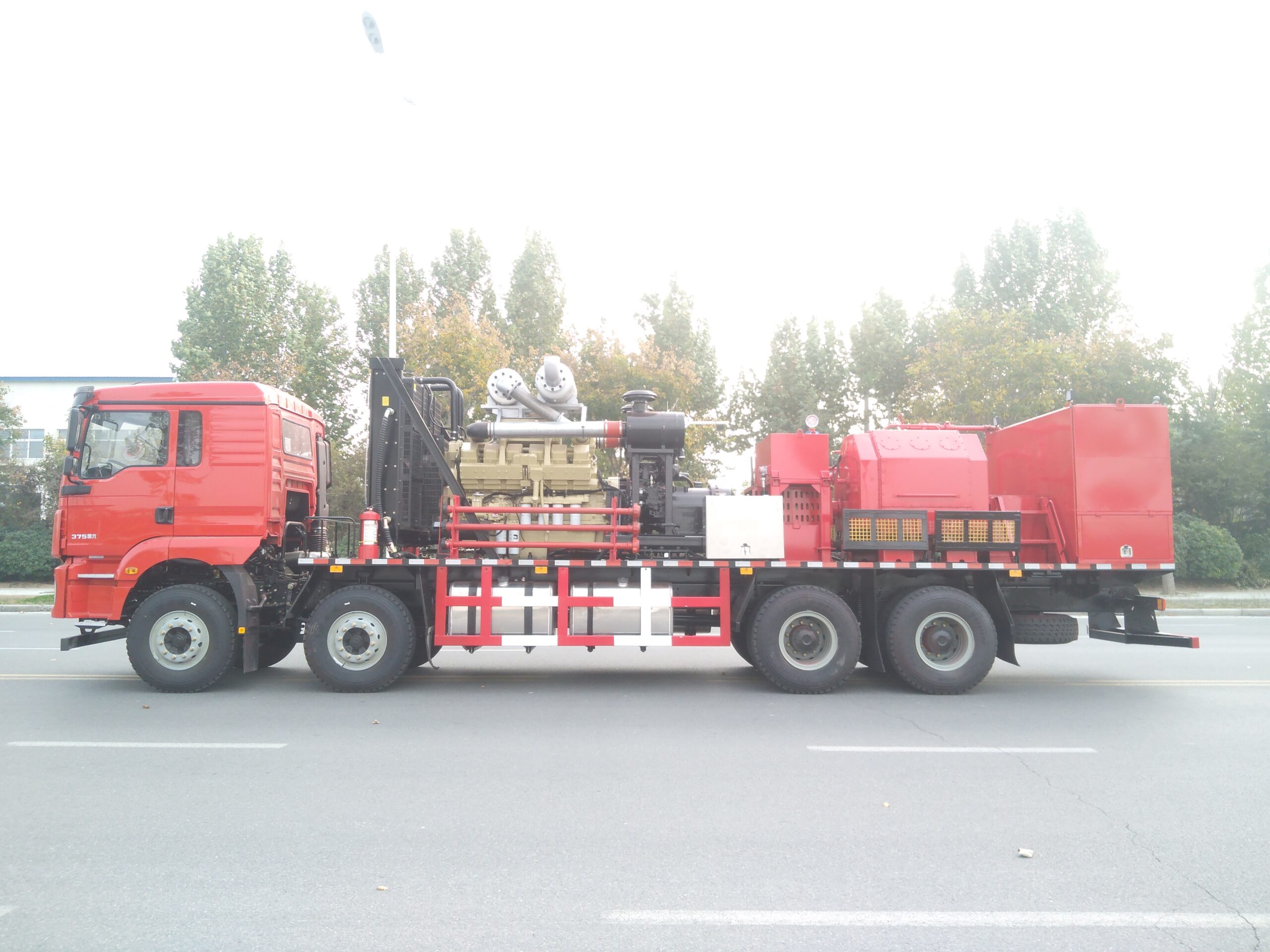

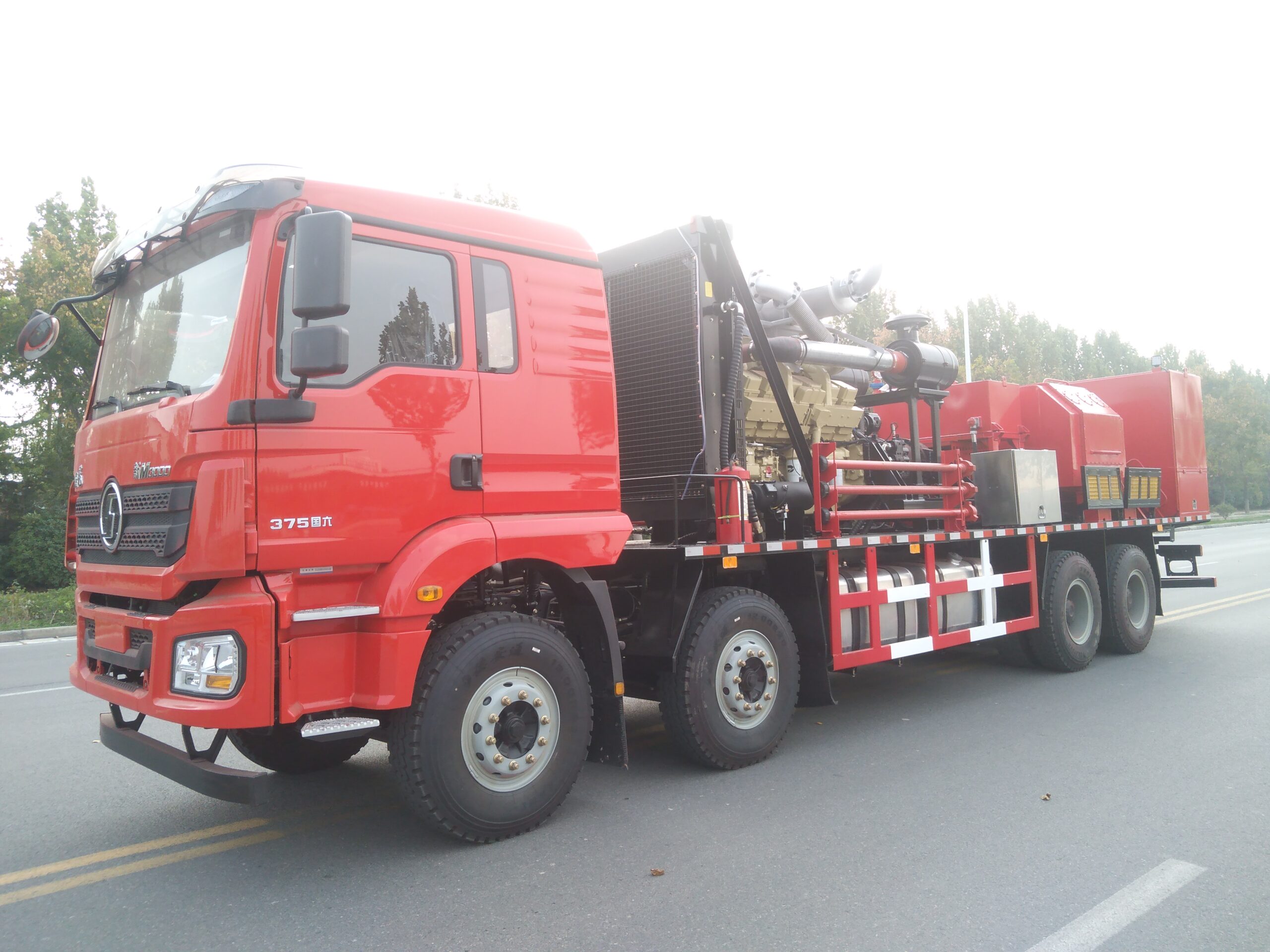

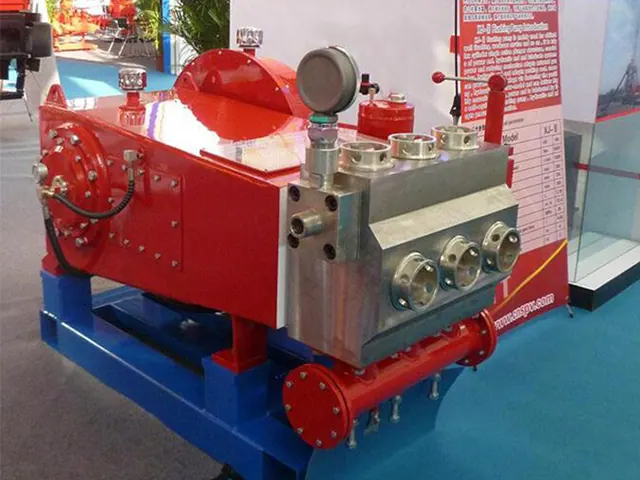

Apply the review to the offered oilfield triplex plunger pump

Use the exact pump stroke, plunger diameter and fluid-end revision in the calculation. Separate power-end condition from pressure-side condition in inspection records. Confirm which parts and operating limits change when a different fluid end or plunger set is proposed.

• Pressure-flow duty point: record the project range and identify whether the value is measured, calculated or still provisional.
• Fluid chemistry and abrasiveness: state the accepted limit and the equipment or process boundary to which it applies.
• Plunger diameter: include variation through the job instead of relying only on the normal operating value.
• Driver speed and power: identify the responsible supplier or site team and the evidence needed before acceptance.
• Maintenance access: review the case that governs this requirement and retain its basis with the equipment records.

The complete package is intended for providing repeatable high-pressure positive-displacement flow for cementing, stimulation, flushing and well-service work. Confirm the scope of the power end, fluid end, plungers and packing, suction and discharge valves against the selected duty. Use the specifications and sizing guide for the broader equipment requirements and the RFQ checklist to organize the supporting documents.
